GNB-14A

Slider Welding Gauge(HJC40)

  • Be made of Stainless Steel.
  • Metric reading.
  • Checking the crown and leg height.
  • Checking the undercut depth.
  • Checking the throat size.
  • Checking the weld length.
  • Checking the angle and gap.

GNB-14A Slider Welding Gauge(HJC40)

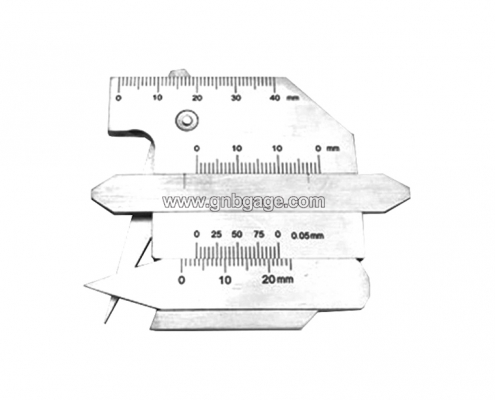

The gauge is composed of stainless steel. Can be used to obtain a wide range of measurements. This gauge consists of five major components from which measurements can be taken. They are the rotating fan, working edge, main ruler, side slide with point and center slide. Some type of measurements that can be taken include but our not limited to butt weld height, undercut, angle of preparation or bevel, gap size, leg of fillet weld throat of fillet weld and the face of the butt weld.

  • Be made of Stainless Steel.
  • Metric reading.
  • Checking the crown and leg height.
  • Checking the undercut depth.
  • Checking the throat size.
  • Checking the weld length.
  • Checking the angle and gap.
