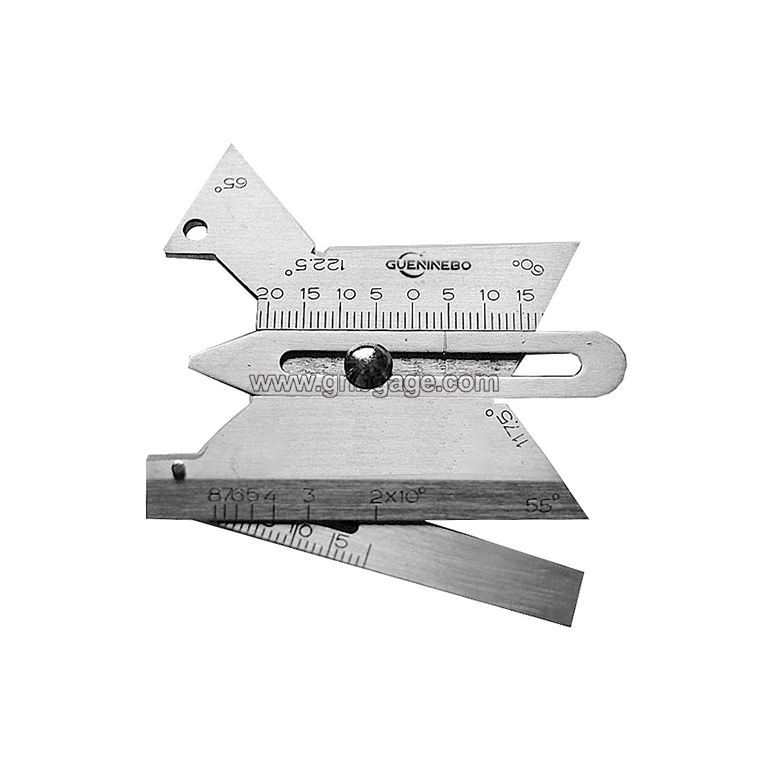

GNB-13 Welding Gauge (HJC30)

GNB-13

Welding Gauge (HJC30)

Be made of Stainless Steel.
Metric reading.
Checking the width of weld seam.
Checking the height of weld seam.
Checking the cap size of weld seam.
Checking the bevel angle of weldment.

Description

GNB-13 Welding Gauge (HJC30)

Be made of Stainless Steel.
Metric reading.
Checking the width of weld seam.
Checking the height of weld seam.
Checking the cap size of weld seam.
Checking the bevel angle of weldment.

Details

GNB-13 Welding Gauge (HJC30)

Item	GNB-13 Welding Gauge (HJC30)
Measurement	Range	Parameter		Testing Tool
Single-side bevel angle	0-10mm	1mm		±0.5mm
Movable bevel angle	20°/30°/40°/50°/60°/70°/80°	±2°		±30′ angle gauge
Width of fillet weld	0-20mm	0.2		±30′ angle gauge
Height	0-12mm	0.2		Feeler Gauge
Width	0-20mm	0.2		0.02 vernier caliper
Bevel Angle	45°/55°/60°/65°	±30′		±10″ universal gauge
Gap size	0.5-3.5mm	0.1		0.02 vernier caliper
